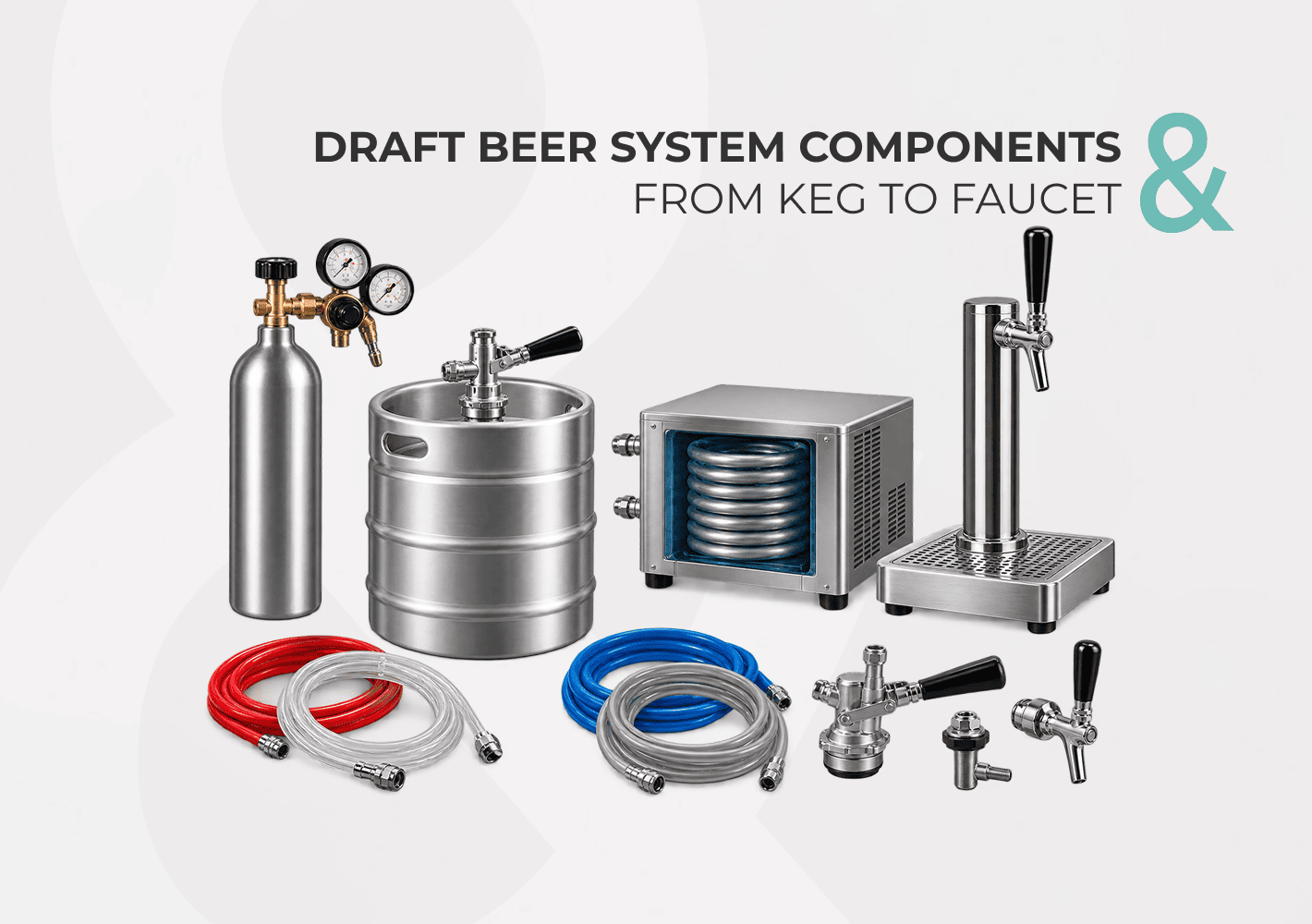

Draft Beer System Components Explained: From Keg to Faucet
A draft beer system may look simple from the outside, but every pour depends on several components working together. Beer has to move from the keg through the right coupler, gas setup, product line, shank, and faucet while staying cold and properly carbonated along the way.
The exact setup can vary from a compact home kegerator to a larger commercial installation, but the basic flow stays the same. Understanding what each component does makes it easier to build a new system, replace worn parts, or troubleshoot poor performance.
This guide follows the beer from keg to faucet and explains the main parts that make a draft system work.
Key Takeaways
- Every draft system starts with a keg and depends on several connected components.
- The keg coupler connects the keg to both the gas and beer sides of the system.
- Regulators control serving pressure and help maintain carbonation.
- Beer lines carry the product toward the dispense point.
- Shanks and faucets complete the final connection at the tap.
- Long-draw systems may also require trunkline and glycol cooling.
- Compatibility between components is essential for reliable performance.
How a Draft Beer System Works From Keg to Glass
The basic path of draft beer is straightforward:
At the same time, gas travels from the CO₂ tank through a regulator and gas line to the keg coupler. That pressure pushes beer out of the keg and through the rest of the system. In a direct-draw setup, these components are usually located close together. In a long-draw system, the keg may be stored much farther from the faucet, requiring additional cooling and line-management equipment. Our guide to Direct-Draw vs. Long-Draw Draft Systems explains those two layouts in more detail.
The Keg: Where the System Starts
The keg stores the beer under pressure and serves as the starting point for the entire draft system. Kegs come in different sizes and may use different valve types, which affects what coupler is needed to connect them to the rest of the equipment.
The keg also needs consistent refrigeration. If the beer warms before it enters the line, pour quality can suffer even when the rest of the system is working properly.
If you are still deciding which keg format fits your setup, see our guide to keg sizes and types before choosing the connecting hardware.
KEG COUPLER: CONNECTING THE KEG TO THE SYSTEM
The keg coupler connects directly to the keg valve and creates two pathways: one for gas entering the keg and another for beer leaving it.
1. Compatibility Check
Not all couplers fit every keg. Different breweries and keg formats may use D-system, S-system, or other valve standards, so compatibility should always be checked before installation.
2. System Operation
Once connected, the coupler allows gas pressure to enter the keg while directing beer into the product line.
3. If the Connection is Poor
Because it sits at the point where the keg joins the rest of the draft system, a poor connection or incorrect coupler can stop the system from working properly before the beer even reaches the line.
CO₂ Tank and Regulator: Controlling Pressure
| SYSTEM FACTORS | WHAT TO KNOW & HOW IT WORKS |
|---|---|
| Primary Function | The CO₂ tank supplies the gas that pushes beer out of the keg and through the system. Because tank pressure is far too high for serving, a regulator reduces it to a usable level and helps keep that pressure stable. |
| Serving Pressure | Serving pressure affects more than flow speed. It also helps maintain carbonation, so lowering or raising it without considering the rest of the system can create foam or flat beer. |
| Multi-Keg Setups & Equipment | In multi-keg setups, additional pressure controls may be needed when different beverages require different settings. For this part of the system, properly selected Gas Equipment helps keep pressure consistent from the tank to the keg. |
GAS LINES AND BEER LINES: MOVING GAS AND PRODUCT
| SYSTEM FACTORS | WHAT TO KNOW & HOW IT WORKS |
|---|---|
| Line Functions | Gas and beer move through separate lines. The gas line carries CO₂ from the regulator to the keg coupler, while the beer line carries the product away from the keg and toward the faucet. |
| Line Resistance | Beer line length and diameter affect how much resistance the beer encounters. A line that is too short can allow beer to move too quickly, while an overly restrictive line can slow the pour. That is why line selection should match the overall system rather than being treated as a standalone part. |
| Selection Criteria | When building or replacing this section of a setup, Beer & Air Lines should be chosen with line length, diameter, pressure, and system layout in mind. |
FITTINGS AND CONNECTIONS: SMALL PARTS THAT MATTER
Fittings connect lines to the other components in the system. They may be small, but loose or incompatible connections can cause gas leaks, pressure loss, or product leaks.
Before ordering fittings, check line size, connection type, and the equipment they need to join. A connection that is technically close but not properly matched can create recurring problems during service.
BEER SHANK: THE CONNECTION BEHIND THE FAUCET
The beer shank creates the connection between the beer line and the faucet. It passes through the tower, wall, or other mounting surface and provides a secure path for beer to reach the dispense point.
Shanks come in different lengths and configurations, so the correct choice depends on where the faucet is mounted and how thick the mounting surface is. A shank that does not fit the installation properly can make faucet placement awkward or create connection issues behind the bar.
BEER FAUCET: WHERE THE POUR HAPPENS
The faucet is the final control point before beer reaches the glass. Opening the faucet allows beer to flow out of the system, while closing it stops the pour.
1. Faucet Types
Standard beer faucets work for many draft applications, while specialty beverages may require different faucet designs.
2. Maintenance and Operation
Regardless of type, the faucet needs to stay clean and operate smoothly. Buildup, sticky internal parts, or worn seals can affect both flow and pour quality.
3. Hardware Selection
If a faucet needs to be replaced or matched to a new setup, Beer Faucets are an important part of choosing the right dispense hardware.
Beer Towers: Bringing the Faucet to the Bar
A beer tower supports the faucets and brings the dispense point to the bar surface. Depending on the setup, towers can be single-leg, double-leg, column-style, T-style, or built for larger multi-tap systems.
Tower choice depends on the number of taps, available space, and the overall draft system design. Cooling also matters, especially in systems where beer has to travel farther before reaching the faucet. A tower that is not kept at the right temperature can affect the quality of the first pour even when the keg itself is properly refrigerated.
Drip Tray: Managing Runoff at the Pour Point
A drip tray sits beneath the faucets and catches drips, foam, and overflow during service. It helps keep the bar cleaner and reduces the amount of liquid that ends up on the counter or floor.
Drip trays come in different mounting styles and sizes, and some include drains or glass rinsers. The right tray should match the faucet lineup and the way the bar is used. For a deeper comparison, see our guide to choosing the right drip tray for your draft system.
COOLING EQUIPMENT IN LONG-DRAW SYSTEMS
| SYSTEM FACTORS | WHAT TO KNOW & HOW IT WORKS |
|---|---|
| When It's Needed | Not every draft system needs dedicated cooling equipment, but long-draw systems usually do. When beer travels a significant distance from the keg storage area to the faucet, keeping the entire run cold becomes much more important. |
| How It Works | In these systems, insulated trunkline carries the beer lines along with cooling lines. A Glycol Chiller circulates chilled glycol through the system to help maintain a stable temperature all the way to the tower. |
| System Differences | This extra cooling infrastructure is one of the main differences between a simple direct-draw setup and a larger commercial long-draw system. |
WHAT COMPONENTS DO YOU NEED FOR A BASIC DIRECT-DRAW SETUP?
A basic direct-draw setup usually includes several essential parts working together to store, pressurize, and serve draft beer.
1. Gas and Cooling Components
The primary elements for maintaining the beer's environment include a refrigerated keg, a CO₂ tank, a regulator, and a gas line.
2. Dispense Components
To route and pour the beer, the system requires a keg coupler, a beer line, a shank or tower, a faucet, and a drip tray.
3. Compact Kegerator Setups
In many cases, a Kegerator combines several of these elements into one compact setup, making direct-draw systems easier to install and manage.
WHAT CHANGES IN A COMMERCIAL LONG-DRAW SYSTEM?
A commercial long-draw system uses the same basic components, but adds more infrastructure between the keg and faucet. Kegs are often stored remotely, beer lines are longer, and the system may need trunkline, glycol cooling, more complex gas distribution, and multiple towers or faucets.
The longer the run and the larger the tap lineup, the more important system planning becomes. Cooling, pressure, line resistance, and maintenance access all need to be considered together rather than as separate decisions.
COMMON COMPONENT COMPATIBILITY MISTAKES
Many draft system problems begin with parts that were never meant to work together. Common mistakes include using the wrong keg coupler, choosing incompatible line sizes or fittings, selecting a shank that does not match the mounting surface, or buying a tower before confirming the final tap count.
Another common issue is treating cooling as an afterthought in long-draw installations. Components should be selected as part of one complete system, not purchased individually and forced to work together later.
Final Thoughts
A draft beer system is a chain of connected components, and every part has a specific job. The keg stores the beer, the coupler connects it to the system, gas provides pressure, lines carry the product, and the shank and faucet complete the pour.
The best results come from choosing components that are compatible and suited to the overall setup. Whether you are building a simple kegerator or a larger commercial system, planning from the keg outward makes installation, maintenance, and troubleshooting much easier.
FAQ:
1. What components are needed for a draft beer system?
A basic draft beer system usually includes a keg, keg coupler, CO₂ tank, regulator, gas line, beer line, shank or tower, faucet, and drip tray. Larger commercial systems may also require trunkline, glycol cooling, multiple regulators, and additional gas distribution equipment.
2. What connects a beer keg to the draft system?
A keg coupler connects directly to the keg valve and provides separate connections for the gas and beer lines. The coupler must match the type of keg valve being used.
3. What does a CO₂ regulator do in a beer system?
A CO₂ regulator reduces the high pressure from the CO₂ tank to the appropriate pressure for the draft system. It helps maintain consistent carbonation and provides controlled gas pressure for dispensing.
4. What is the difference between a beer line and a gas line?
The gas line carries CO₂ from the regulator to the keg coupler, while the beer line carries beer from the keg to the faucet. They use different fittings and materials designed for their specific purpose.
5. What does a beer shank do?
A beer shank connects the beer line to the faucet and passes through a draft tower, wall, refrigerator, or other mounting surface. The shank length and style should be selected based on the installation and equipment being used.
6. Do all draft beer systems need a glycol chiller?
No. Short-draw and direct-draw systems may not require a glycol chiller because the keg and faucet are located close together. Glycol cooling is typically used for long-draw systems where beer must travel a longer distance from the keg to the dispensing location.
7. Can I build a draft beer system from individual components?
Yes. A draft system can be assembled from individual components, provided that the parts are compatible and properly sized for the application. Keg type, coupler, gas and beer lines, pressure equipment, cooling, shanks, and faucets should all be considered together when designing the system.
8. How do I know if draft beer components are compatible?
Check the keg valve type, fitting and connection sizes, line dimensions, pressure requirements, mounting configuration, and cooling requirements before purchasing components. Compatibility is especially important when combining components from different manufacturers or modifying an existing draft system.
